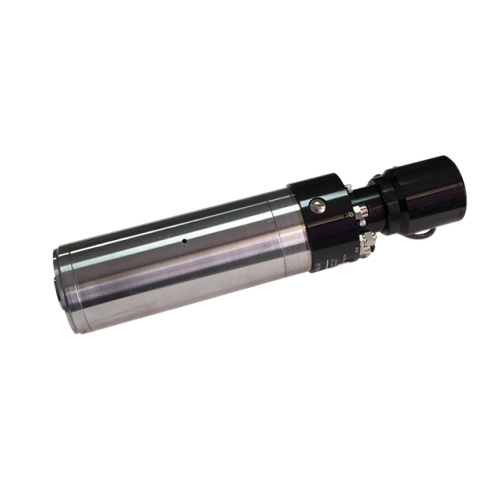

Model: DC-0840A

Motor power KW 4kw (also available in 2.5kw and 3.5kw)

Rate voltage V/AC 380（3-）

Max speed Rpm 40000

Max current A 17

Max frequency Hz 1333

Torque N·M 1.19

Specifications

Cone at the end of the shaft pulsates mm ≤0.001

Tooling releasing air pressure Kgf/cm² 5.6-6.0

Tooling change method ─ ATC

Air curtain pressure at front end Kgf/cm² 2.5-3.0

Tooling pulling force N ≥1100

Tooling back air pressure Kgf/cm² 5.6-6.0

Tooling connection ─ ISO20 tool holder

Cooling ─ Water cooling

Encoder ─ sine and cosine 1Vpp(choice)

Coolant pressure Kgf/cm² ≥2.5

Approach switch ─ PNPON

Bearing lubrication method ─ Grease

Balance level ─ G1

Install method ─ Clamp

Vibration Value mm/s ≤0.8

Weight Kg  7.65
