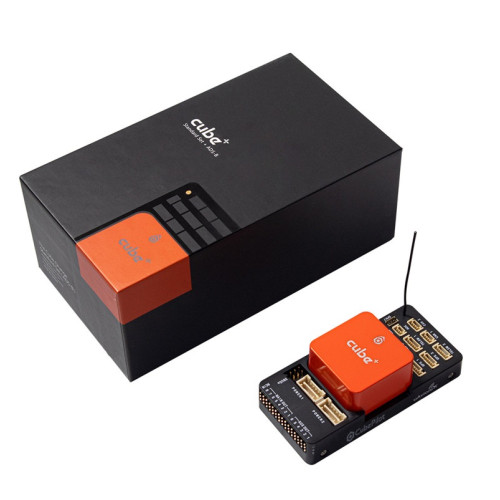

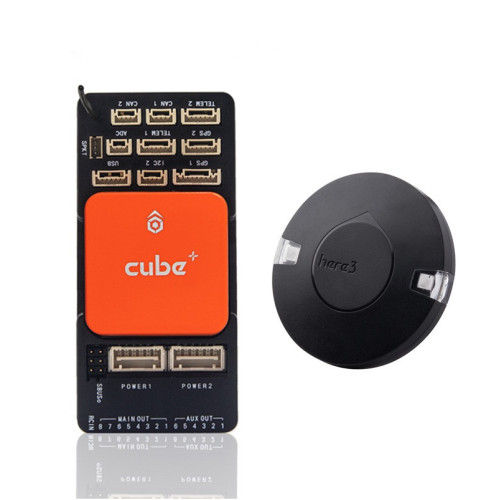

Cube Orange + Standard Set W/ here 3 GPS & ADS-B 2

Features
- Supports multiple modes such as Loitering, Altitude Hold, mode (with Waypoints), following mode, etc

- Supports Mission Planner and QGroundControl ground control stations

- Built-in flight logging

- Real-time flight data transmission

- Supports 360-degrees object avoidance

- Equipped with High Performance H7 Processor

H7 has double-precision (DP) FPU, 1MB RAM, and 400MHz CPU processor provides high performance, extremely fast operation, and stable solution for flight.

- Situational Awareness by Integrated ADS-B

A 1090MHz customized ADS-B receiver from uAvionix has been integrated into the new ADS-B carrier board. This provides new function without size increment. UAVs equipped with the new carrier board can receive attitude of commercial manned aircrafts within the range of ADS-B out. This effectively informs the UAS operator to enable them to assess the risks on their current operation.

Easy switching of PWM output signal voltage

PWM output supports switching between 3.3V and 5V signal levels. Voltage switching can be done by ground control station software. This improves compatibility with various external peripherals.

Support for multiple vehicle types：Icluding Helicopter, multicopter, fixed wing, VTOL, Rover, Boat, Submarine, etc.

Specifications

Please note that:

At present, due to the relatively new chip,

PX4 firmware and old apm firmware are not supported temporarily.

Firmware above v4.2.3 of apm can be used.

Main Processor：STM32H757（The new chip has good performance）

Coprocessor：STM32F1

Supported RC signals：PPM/SBUS/DSM

Power redundancy：Triple redundancy

Sensors：Triple IMU System

Sensors details：ICM20649(integrated accelerometer+gyroscope)

ICM20602(integrated accelerometer+gyroscope)

ICM20948(integrated accelerometer+gyro+magnetometer)

MS5611 x 2(Baro)

Firmware ：Not supported PX4 open source flight controller firmware

Supported vehicle types：Fixed-wing planes、Copters with 3-8 motors、Helicopters、VTOL-planes、Rovers/boats/submarines

Weight：73g

Chassis Material：CNC Aluminum Alloy(cube)+ABS Molding(Carrier Board)

Size cube：38.4x38.4x22mm

Carrier Board：94.5x44.3x17.3mm

Operating temperature：-10~+55° IMU with temperature control

PWM I/Os：14

Mavlink serial interface：2

Number of GPS supported：2

Debug interface：1

I2C interface：1

CAN interface：2

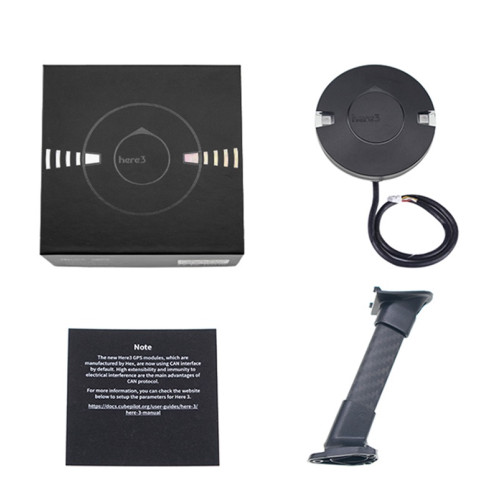

Here3

GNSS：Yes

Compass：Yes

Protocol：CAN

Real-time Operating System：Yes

Firmware Update：Yes

RTK：Yes

Dustproof，waterproof splash：Yes

Receiver Type：u-blox M8 high precision GNSS modules (M8P)

Satellite Constellation：GPS L1C/A, GLONASS L1OF, BeiDou B1I

Positioning accuracy：3D FIX: 2.5m / RTK: 0.025m

Processor：STM32F302

IMU snesor：ICM20948

Navigation Update Rate：Max 8Hz

Communication Protocol：CAN

Operating Temperature：-40°C to 85°C

Dimension：76mm x 76mm x 16.6mm

Weight：48.8g

Item Packing

1 x Package

1 x Cube Orange + Set

1 x Here GPS

1 x Power Brick Mini

1 x I2C Board

1 x Buzzer

2 x Telemetry Cable

1 x GPS1 Cable

1 x GPS2 Cable

1 x Power2 Cable

1 x Power Cable

1 x I2C Cable

1 x Micro USB Cable

4 x Mounting Screws

3 x 3M Large Stickers

2 x 3M Medium Stickers

4 x 3M Small Stickers

1 x User Manual

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

Captcha

Please complete the captcha validation below

Cube+ Orange Standard Set with Here3 GPS

Product Code:cube+
Availability:Pre Order (2-10 days)

R18,950.00

Qty

0 reviews / Write a review

Write a review

Cube+ Orange Standard Set with Here3 GPS

R18,950.00
