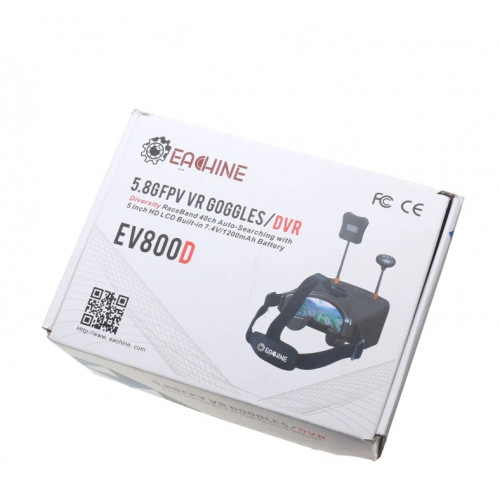

  • FPV Goggles EV800D

Features:

·         With DVR, you can record videos anytime and anywhere;

·         Low power consumption;

·         Diversity module reception to make the signal more stable;

·         Auto-Searching, support a key search frequency;

·         5 Inch 800*480 dot high brightness LCD screen;

·         Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;

·         Built-in 7.4V/1430mAh high-capacity Li-ion polymer Battery;

·         Universal DC055 charging interface;

·         Real-time video return, Very low time-delay;

·         The menu supports 8 languages;

·         Support external video signal input;

·         Support Audio signal output (You can connect headphones)








Model

 EV800D

Name

5.8G FPV Goggles

LCD Screen

Screen size:    5 Inch

Resolution:    800*480

Display Ratio:  16:9

View Angle:    6 o’clock

Brightness:    300cd/m² with high brightness backlight LED

Video delay

Video time-delay less than 20ms

Lens

2.8X Fresnel Lens, 92% transparent rate no distort of light

Interface

Antenna

2 X RP-SMA male

DC055

To charge the battery

AV Jack

External video signals input or internal Audio signal output

Card slot

TF-Card, Support up to 32G(C10 recommend)

DVR

REC size:    VGA / D1 / HD               Selectable

REC sound:  ON / OFF                   Selectable

REC time:   OFF / 3min / 5min / 10min     Selectable

Frame rate:  30 Frames

Compress format:  MJPEG

Record file format:  AVI

Languages

English,German,French,Spanish,Italian,Chinese,Russian,Japanese

Power



Supply

Power adapter:  DC12V/2A (DC055 interface)

Battery:  7.4V/1430mAh,



DVR module ON: Each full charge revive around 2.5hr working time

DVR module OFF: Each full charge revive around 3.5hr working time

Power Consumption:



* Normal mode: The device operating current of 400mA at 3.7V;

* Record Mode : The device operating current of 620mA at 3.7V;

* Built-in battery maximum charge current of 800mA;

Wireless

Frequency Table(MHz)



CH1

CH2

CH3

CH4

CH5

CH6

Write a review

Note: HTML is not translated!
   Bad           Good
Captcha

FPV Goggles EV800D

  • Product Code:EV800D
  • Availability:Pre Order (2-10 days)

  • R4,199.00


0 reviews / Write a review
