Features:

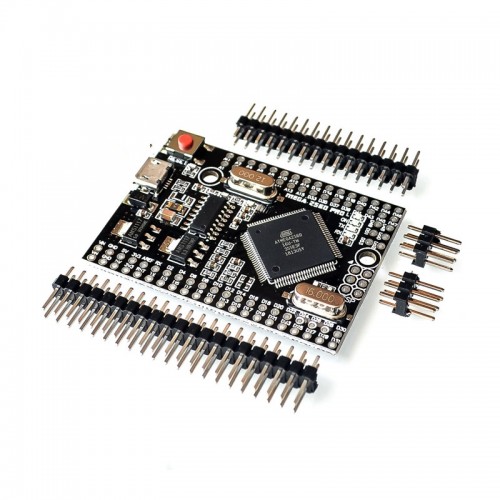

Embedded version Mega 2560 CH340G / ATmega2560 - compatible with Mega 2560 motherboard. Based on Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G.

The circuit board is compact in size (38x55mm). This is a good solution to make your final project on the welding prototype board.

The motherboard function is similar to Arduino Mega 2560. It is an embedded motherboard, and equally as stable, uses the original chip ATmega 2560 (16 MHz).

The board uses chip CH340G as converter UART-USB.

When working at 12 Mhz,  it provides stable data exchange results (install driver to the computer).

Mega PRO (Embedded) 2560 CH340G/ATmega2560 - Connect to a computer via a microUSB cable (Almost all Android smartphones).

You can power the circuit board through the MicroUSB connector or supply power to the pins. The voltage regulator (LDO) can process the input voltage of 6V to 9V (peak 18V) DC. The output current is 5V - about 800mA and 3.3V - about 800mA (note that the higher the input voltage, the lower the output current). This will provide reliable impetus for most of your initial projects.

Package includes:

1 x  Pro ATmega2560

Specs:

Microcontroller: ATmega 2560 (16Mhz)
USB-UART interface: CH340G
Input voltage: 6-18V (normal 6-8V)
PC connection socket: MicroSUB
power socket: DC Barel Jack
70 digital I/O
16 analog inputs
14 PWM
4 bus of UART
